The K-Line Ag MaxxRipper® is the answer to your soil compaction issues. Manufactured for breaking hard pans and deep tillage applications to prepare compacted soils for planting.
Break deep compaction and unlock your soil’s full potential
Modern farming puts huge pressure on soils. Repeated traffic from heavy machinery, wet harvests and tight working windows can all create hard pans that restrict root growth, hold water up in the profile and limit yield potential. MaxxRipper® is purpose-built to tackle this problem, shattering compacted layers down to approximately 600 mm and restoring natural soil structure.

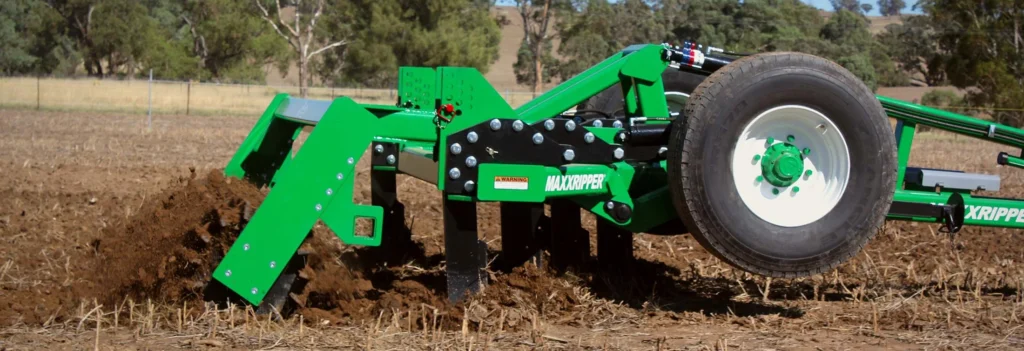

Its extremely robust frame carries heavy-duty ripping shanks arranged in an efficient V-pattern, with 500–550 mm spacing to reduce draft and improve tracking. A shear-pin protection system guards against underground obstacles, while the trailing knifing roller breaks up clods and leaves a more even finish for subsequent operations.
Available in 7, 9 and 11 shank trailing models to suit tractors from around 280 to 600 hp, MaxxRipper® gives you the tools to improve root development, nutrient uptake, moisture availability and overall crop performance across demanding Australian conditions.

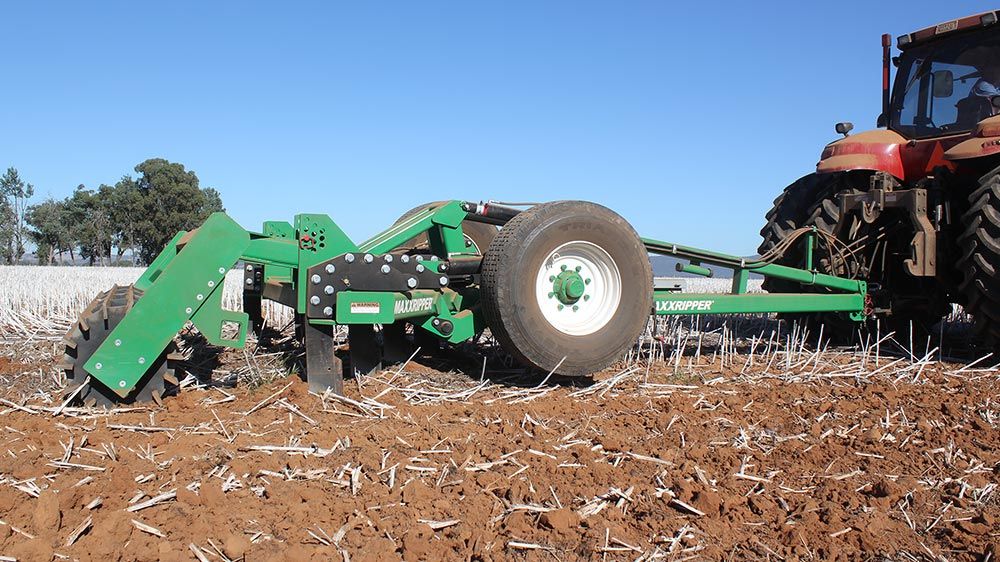

MaxxRipper® combines deep-working shanks with a smart, high-clearance layout to deliver true ground-breaking performance. The V-pattern shank arrangement improves soil shattering and reduces draft, while the heavy main frame members and underframe clearance help residue flow easily through the machine. Each shank is protected by a shear-pin system, and the heavy-duty knifing roller conditions the soil surface and busts clods for better water infiltration and trafficability. By breaking through hard pans and improving subsoil structure, MaxxRipper® encourages deeper root systems, greater nutrient access and more consistent crop growth across the paddock.
The ultimate groundbreaker!
The MaxxRipper® by K-Line Ag is designed to tackle soil compaction problems, offering deep tillage solutions that prepare your soil for planting. With deep ripping tines capable of breaking up compacted soils to a depth of approximately 600mm (23”), the MaxxRipper® ensures superior root structure, greater nutrient uptake, better moisture availability, healthier plant development, and ultimately, higher yields.
Where soil compaction is encountered, the MaxxRipper® is your answer for:
Better moisture availability
Healthier plant development
The K-Line Ag MaxxRipper® offers groundbreaking performance to maximise yields. Don’t just take our word for it—get in touch with us today so we can illustrate the power of our deep ripper for sale.
Benefits
Superior root structure
Greater nutrient uptake
Better moisture availability
Healthier plant development
Higher yields
Features
Extremely robust frame
Heavy-duty deep-ripping tines with shear pin system
Heavy-duty roller options for soil conditioning and clod busting
V-pattern tine layout for greater efficiency
V-pattern shank layout
With its V-pattern shank layout, the MaxxRipper® ensures efficient draft and smoother operation, reducing strain on machinery while maximising field coverage. The result is enhanced root development, improved nutrient absorption, better moisture retention, and ultimately, higher crop yields.
Heavy duty roller bearing
The K-Line heavy duty roller bearing is the result of years of dedicated research and development by K-Line Ag, engineered to deliver superior durability and performance in the toughest agricultural conditions
MaxxRipper® Options
MaxxRipper® offers a range of point and shank options so you can match the level of disturbance to your soil type and farming system. Minimum soil disturbance points focus energy on breaking the hard pan while leaving the surface relatively undisturbed, ideal for controlled-traffic or stubble-retained systems. Cast wing points and parabolic tynes provide greater lift and mixing where more soil inversion or residue movement is required. Optional guard styles further protect the shanks in abrasive or rocky conditions, helping you fine-tune performance, manage draft and extend component life while achieving the ripping result your paddocks need.
Minimum Soil Disturbance Point
Standard on all machines. Ideal for breaking that hard pan with minimal soil disturbance
Cast Wing Point
Ideal for soil mixing and inversion
Parabolic Tine
Parabolic tine option available on request. Designed for maximising full soil disturbance at depths to 600mm. Excellent for heavy compacted irrigated soils and great for effective clay incorporation in non-wetting sandy soils.
Model Specifications
Code: 3235T, Description: 7 Tine Ripper, Trailing, Operating Width Aprrox: 3.5m 11.5′, Tractor Power Range: 280-420 hp, Weight Approx: 4,500 kg 9,922.5 lb, Transport Height Approx: 2.1m 6.9′, Transport Width Approx: 3.8m 12.4′, Transport Length: 6.95m 22.8′
Code: 3245T, Description: 9 Tine Ripper, Trailing, Operating Width Aprrox: 4.5m 14.8′, Tractor Power Range: 360-500 hp, Weight Approx: 5,000 kg 11,025 lb, Transport Height Approx: 2.1m 6.9′, Transport Width Approx: 4.9m 16.0′, Transport Length: 7.32m 24.0′
Code: 3260T, Description: 11 Tine Ripper, Trailing, Operating Width Aprrox: 6.0m 19.7′, Tractor Power Range: 450-600 hp, Weight Approx: 5,500 kg 12,127.5 lb, Transport Height Approx: 2.1m 6.9′, Transport Width Approx: 6.0m 19.6′, Transport Length: 7.70m 25.3′
Minimum Soil Disturbance Point: Standard on all machines. Ideal for breaking that hard pan with minimal soil disturbance.
Cast Wing Point: Ideal for soil mixing and inversion.
Parabolic Tine: Parabolic tine option available on request. Designed for maximising full soil disturbance at depths to 600mm. Excellent for heavy compacted irrigated soils and great for effective clay incorporation in non-wetting sandy soils.
