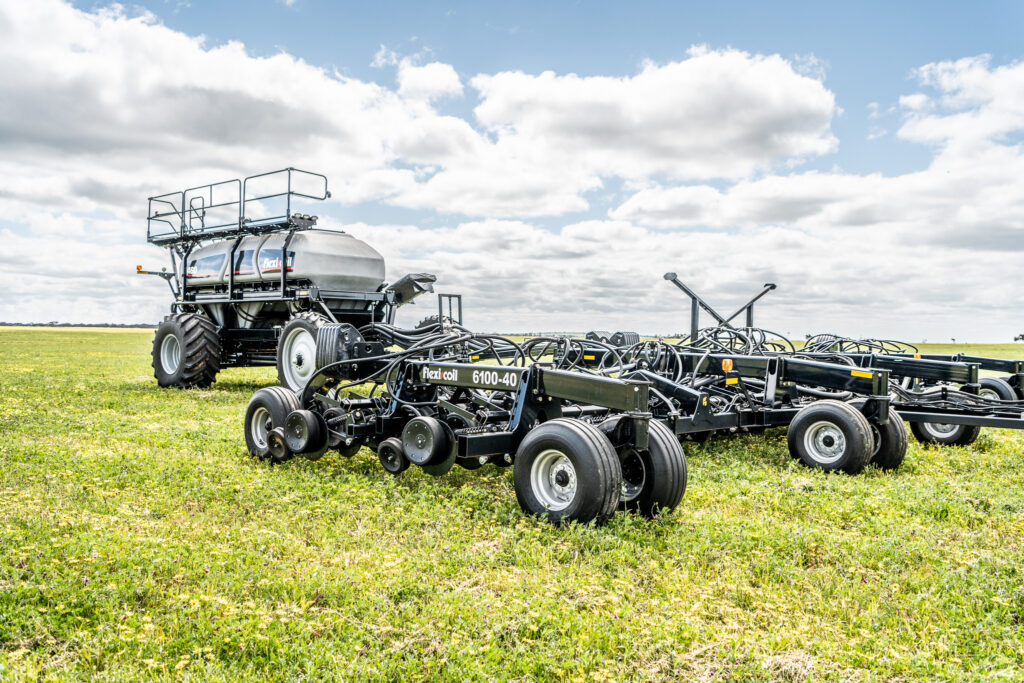

6100 Precision Disc™ Drill
Delivers optimal yield potential from every seed
The 6100 Precision Disc Drill delivers optimal yield potential from every seed. Accurate seed placement with forward-facing seed tubes slows the seed down and helps ensure it stays in the row — whether seeding canola a half-inch deep or chickpeas 3 inches (76 mm) deep.
The parallel-link system ensures even depth placement, no matter the terrain. Variable down-pressure springs apply correct pressure to ensure better penetration in varying residue and soil conditions.

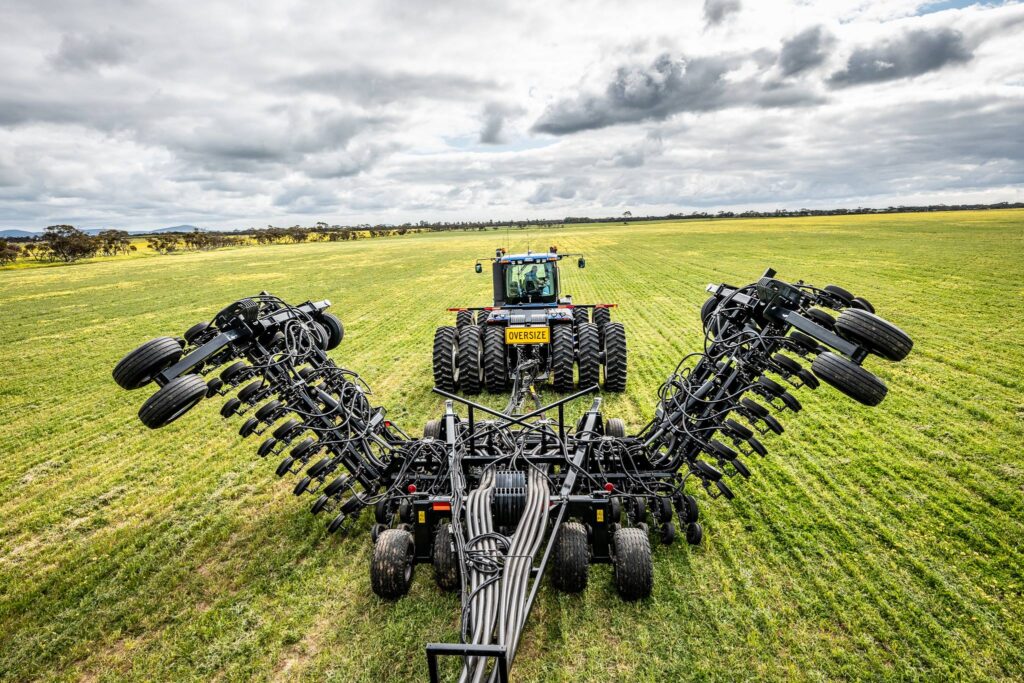

The 6100 Precision Disc Drill is available in 30 ft (9.14 m) three-section flex, 40 ft (12.19 m) three-section flex, 50 ft (15.24 m) five-section flex and 60 ft (18.29 m) five-section flex.
The parallel-link system ensures even depth placement, no matter the terrain. Variable down-pressure springs apply correct pressure to ensure better penetration in varying residue and soil conditions.
The 6100 precision disc drill is offered in a range of sizes and row spacings for big hectares and maximum productivity. The frame design offers exceptional weight distribution that is ideal for many different crops and soil types. In addition, the narrow V-shape envelope adds additional stability for safe and convenient transport to and from the field.

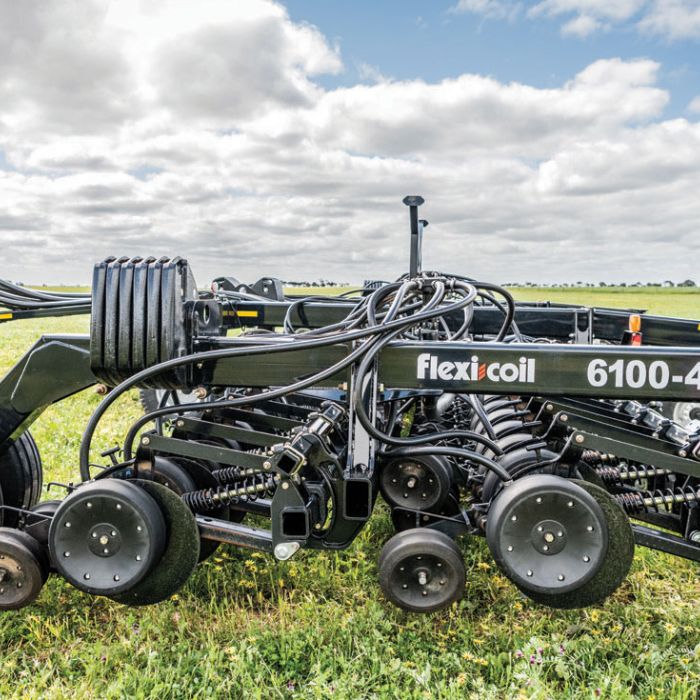

Industry-leading patented parallel link design provides even seeding placement at higher speeds and on rougher terrains.
True 0 – 89mm depth settings are quickly and easily adjusted using a single hand – best in class.
The 45.7cm (18”) disc cuts cleanly through the heaviest crop residue to ensure optimal seed-to-soil contact.
Heavy-duty rubber, smooth-faced concave 10cm x 30cm packer wheel is designed specifically for exceptional closing in tough conditions in a range of soil types.
There are three convenient settings of 27, 34, and 38kg of available variable packing pressure for each row unit.
In-cab hydraulic down-pressure adjustment is standard equipment, allowing operators to make on-the-go adjustments without leaving the seat by using any ISOBUS display.
Each opener features a long-life disc scraper with integral tungsten carbide wear components, oil-impregnated copper iron alloy bushings, sealed double-row main bearing with integral triple lip seals, and external shield.
OptiRow automatic downforce control simplifies operation, improves depth control, and reduces unnecessary wear and tear.
