The Farmall 25SC tractor doesn’t skimp. One look and you’ll realise there’s a lot to this machine. Its versatile design and full lineup of attachments let you tackle a wide range of tasks with ease. And it all comes in a tractor that’s both economical and durable.
Farmall Subcompact Series

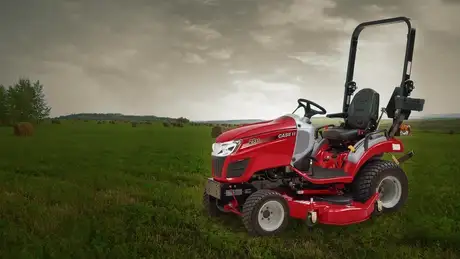

Power and performance in an efficient package. You don’t have to sacrifice when you need a subcompact tractor to do the work. The Farmall® 25SC Subcompact tractor blends power and performance into a tractor that is worthy to carry the Farmall tractor name.
The Right-Sized Tractor to Meet Your Needs
The Farmall 25SC tractor doesn’t skimp. One look and you’ll realise there’s a lot to this machine. Its versatile design and full lineup of attachments let you tackle a wide range of tasks with ease. And it all comes in a tractor that’s both economical and durable.
The Working Environment
The open-air platform balances style and function. Easily accessible controls are not in the way when entering or exiting. And the flat platform means no jumping over a transmission hump.
Get the Traction You Need
The Farmall subcompact comes standard with four-wheel drive, letting you tackle even the toughest jobs with ease.
Clean-Running, Efficient Engine
Specifications
- Emissions Level: Stage V
- Engine HP: 24.7
- Rated speed rpm: 3,000
- Cylinders: 3
- Aspiration: Natural
- Displacement: 1.26 L
- Fuel Tank: 25 litres
Handle All Your Jobs with Ease
Specifications:
- PTO HP: 17.2
- PTO Speed: 540
- PTO Type: Independent Electro-hydraulic engagement
- Mid-PTO: Standard
- Mid-PTO speed: 2,500 RPM
Specifications
3-point hitch: chain-type stabilisers/fixed link ends
3-point lift capacity @ ball ends: 450 kg
3-point lift capacity @610mm behind ball ends: 330 kg
3-point linkage category: 1

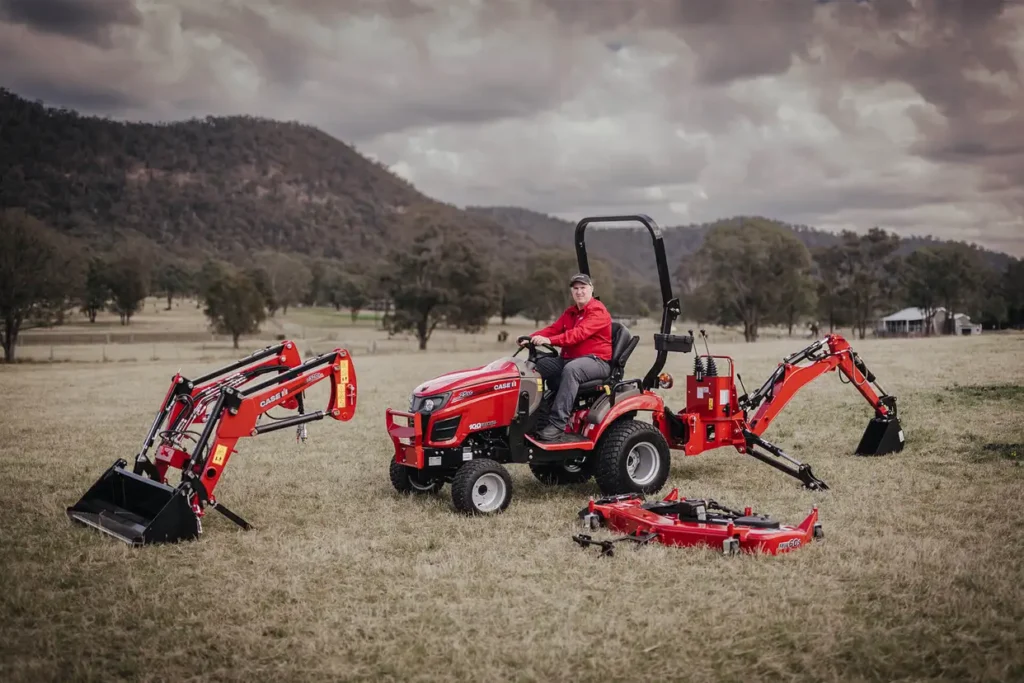

Compatible Loader, Backhoe & Mower

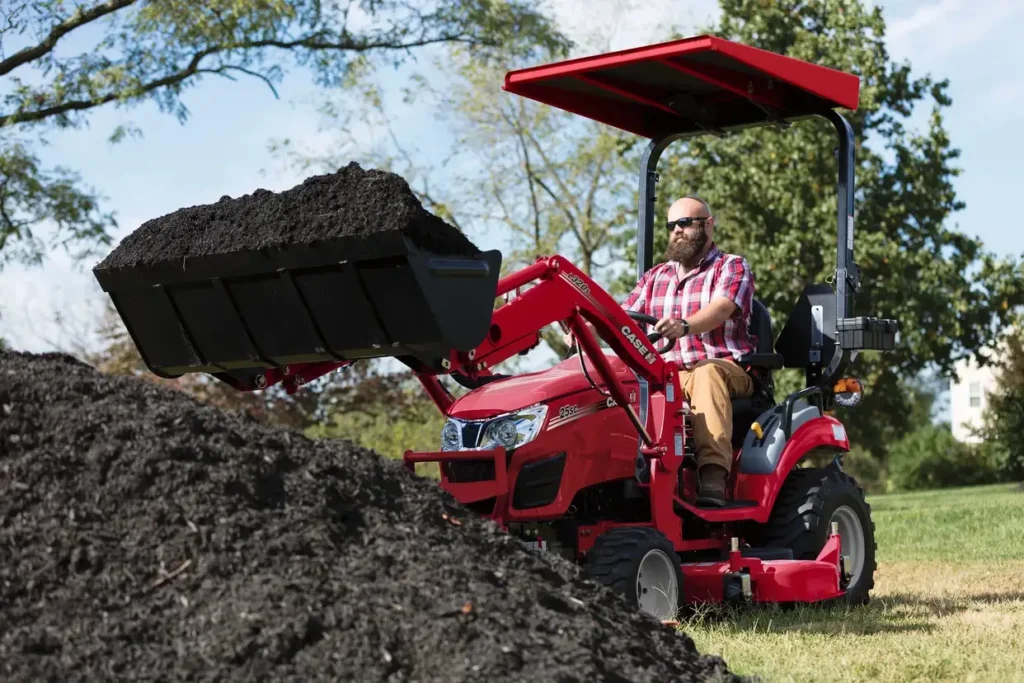

Front Loader L320S
Designed for Farmall® Subcompact tractors with the following.
- Safe Working Load (SWL): 218 kg
- Max Lift Height: 1830 mm
- Max Hinge Pin Height: 1650 mm
- Mechanical Self-Levelling: Standard
- 4 In 1 Bucket with third service integrated into mid-mount valve
MW60S Mower
- Mounting Point: Mid Mount
- Cutting Width: 1520 mm
- Side Disc Charge Stamped Deck
BH80S Backhoe
- Bucket Size: 9 inches
- Digging Depth: 2020 mm
- Swing Arc: 135 degrees
- Shipping Weight: 321 kg
