Storage Capacity: 177m3
Length 19.8 m
Width 4.5 m
Height 4.2 m
Unloading Height 5.6 m
Delivery Auger 20”
Cross Auger 18”
WEIGHTS
Tare – 24 Tonne, Gross – 174 Tonne

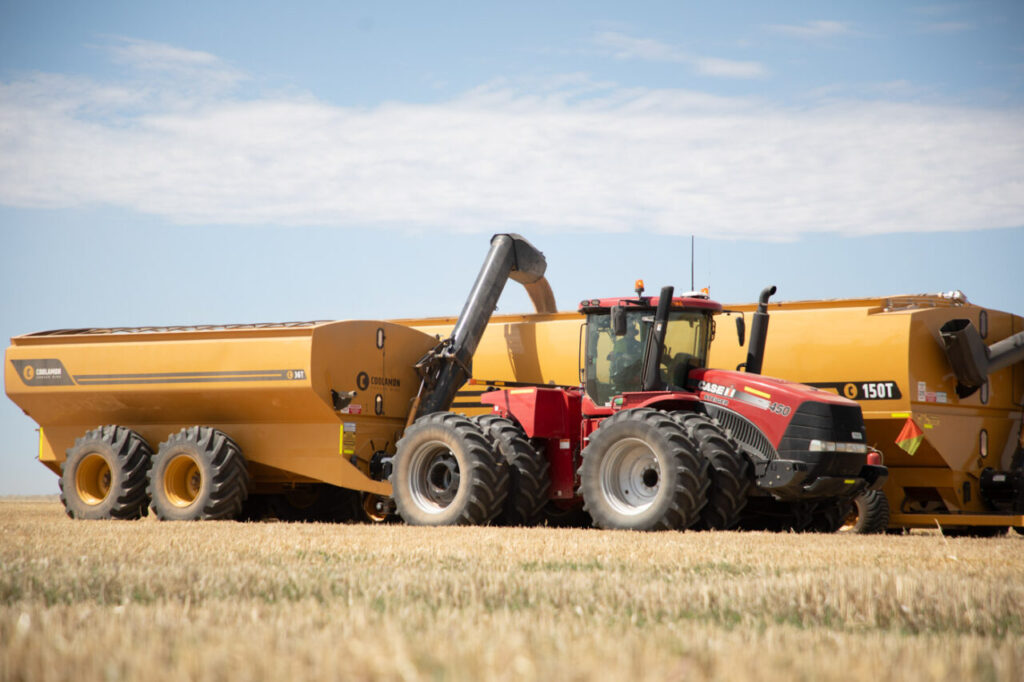

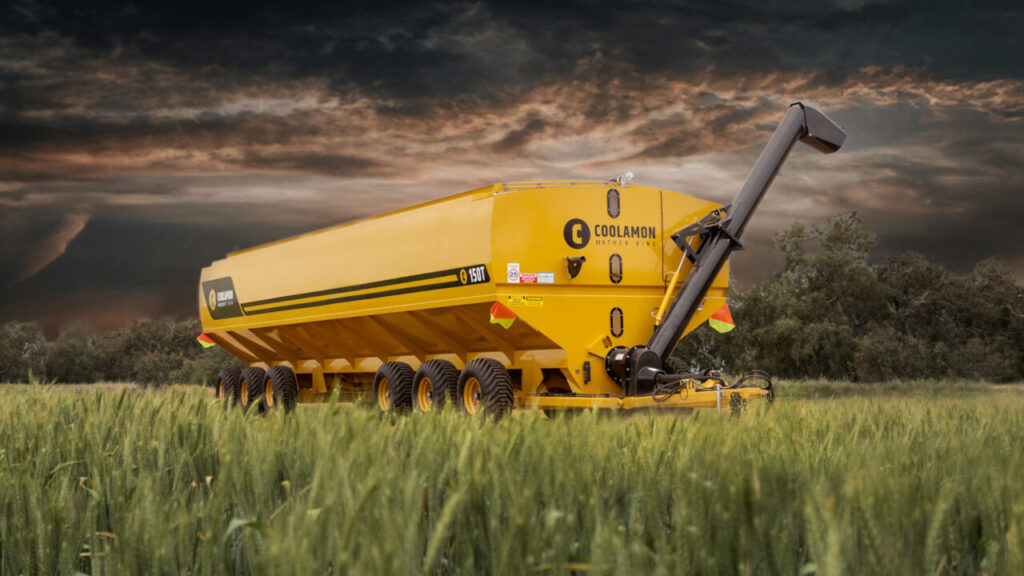

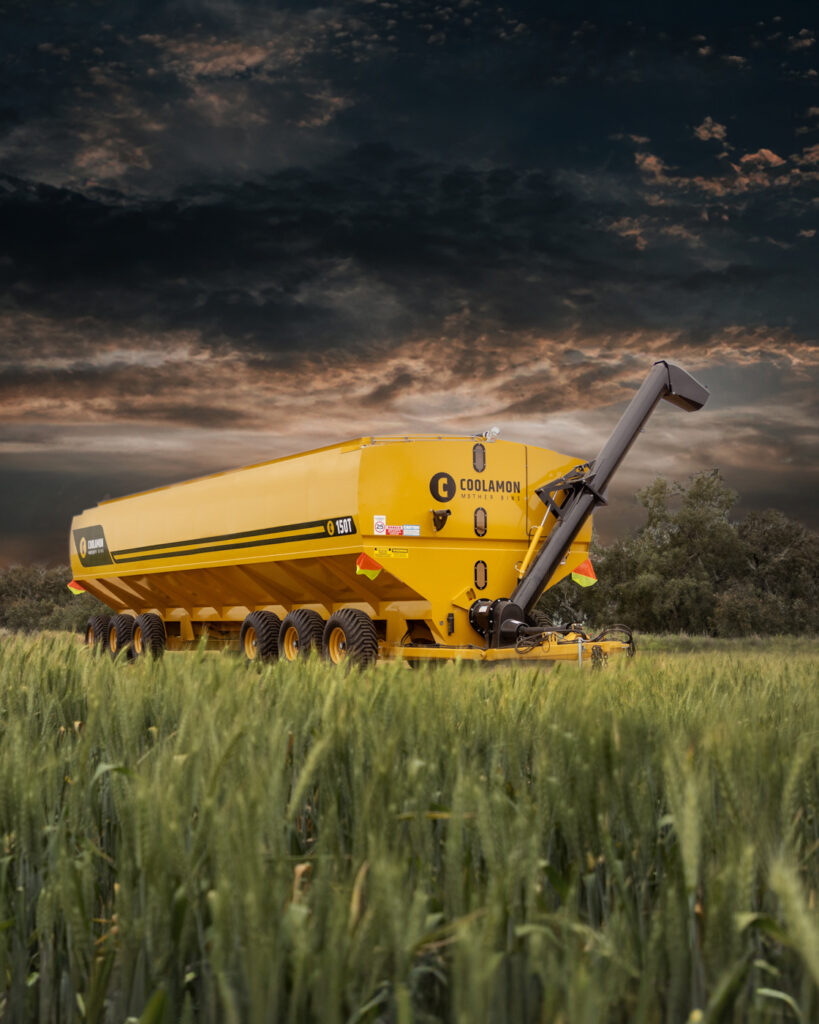

Our Market leading 𝗖𝗼𝗼𝗹𝗮𝗺𝗼𝗻 Mother bins are the 𝘀𝘁𝗿𝗼𝗻𝗴𝗲𝘀𝘁 and 𝗺𝗼𝘀𝘁 𝗿𝗲𝗹𝗶𝗮𝗯𝗹𝗲 bins 𝗺𝗮𝗻𝘂𝗳𝗮𝗰𝘁𝘂𝗿𝗲𝗱 𝗶𝗻 𝗔𝘂𝘀𝘁𝗿𝗮𝗹𝗶𝗮 and are 𝘁𝗵𝗲 𝗹𝗲𝗮𝗱𝗲𝗿 for 𝗺𝗼𝘁𝗵𝗲𝗿 𝗯𝗶𝗻 𝘁𝗲𝗰𝗵𝗻𝗼𝗹𝗼𝗴𝘆. All models & options are designed and built in house. Leveraging our years of experience and development of our robust Coolamon Chaser Bin, you the grower are assured of quality and reliability. Large flotation tyre footprint assists in staying on top of the ground making the bin easier to pull and avoids damage to laneways and fields.
Front and Rear Mechanical Linkage Steering
Front and Rear steering through a linkage system provides more direct steering and easier maintenance and servicing.
550/60-22.5 Floatation tyres
These tyres offer “bulldozing free” travel across any paddock condition
20 inch unloading auger with hydraulic kicker
Allows for smooth efficient unloading
Rosta tensioning system
Continuously applies tension to drive chain system reducing maintenance
100 hp Bondioli & Pavesi PTO with in built clutch
Smooth, reliable engagement and unloading with override clutch
Electrically operated tarp
Safe and fast coverage when required, operated from the ground
6” wide full clean out doors
Time saving with easy clean out of the bin
Rear access door
Easily and safely inspect the bin from the conveniently placed rear door, reducing WH&S risks
High quality 2 pack paint system
Long lasting with added strength for the harshest conditions
Curved Bin sides
Creating additional strength and aesthetic look
Heavy duty axles
rated at: . 10km/h – 9,000kg, . Static – 15,000kg
Hydraulic kicker chute
Allows operator to place grain where needed on unload
Simple & effective drive system
designed to handle 1000
PTO with duplex chain
Designed to handle 1000 PTO with duplex chain
Split length hydraulic internal shut off door
Effective grain control
Folding auger linkage system
Precise movement near end of stroke
Grain pick up points have 6mm auger flighting segments
4.8mm continuous flighting with 6mm segment flighting at pick up and drop off, more durable and efficient
OPTIONAL EXTRAS
CAMERA PACK FEATURES
-7″ colour screen which is fitted inside the tractor cab
-Camera fitted to the top of auger to help see where the grain is going
-A second camera is fitted to the rear of the bin which provides eyes behind you when travelling down the road
LIGHT PACK FEATURES
-Includes taillights & revolving light at the rear
-Working light fitted to the top of the auger which is powered off the taillights with an automatic switch fitted at the delivery auger hinge point so the light automatically comes on when delivery auger is in working position
-7- pin round large plug as standard
BRAKE FEATURES
-Hydraulically operated ‘S’ cam drum brakes (air optional)
-Gives operator more stability and control
-Handy option for farmers with undulating country or for inexperienced operators
